Common features throughout the range include:
Available at 100 or 250 watts RMS output power and in only 1U of rack space.
Application are for systems that require up to two microphones with user adjustable voice override and 3 stereo to mono mixed line inputs.
Optional extras include cabinet sleeve for non rack mounting systems and 100 volt line transformers at 100 or 250 Watts (mono or stereo).
For more information visit the BGM Series product page.

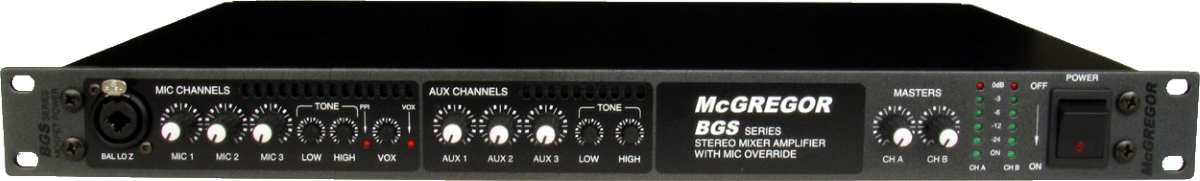

Available at 100+100 or 250+250 watts RMS output power in only 1U of rack space.
These amplifiers have 3 microphone inputs with user adjustable voice override and 3 stereo line inputs.
The BGS Series is identical to the KA except the KA has a digital effects processor providing up to 40 different effects for all the microphone inputs.
Ideal where extra power levels or stereo music is a requirement. These amplifiers are proving popular for aerobics, zumba, dance and spin class instructors as well as conventional install applications.
Optional extras include a cabinet sleeve and 100 volt line transformers at 100+100 or 250+250 Watts.
For more information visit the BGS Series product page & KA Series product page.
Available at 100+100 or 250+250 watts RMS output power in only 1U of rack space.
The DA series has 2 microphone inputs with user adjustable voice override and 4 stereo line inputs.
It can be used as a stereo amplifier or as a two zone mono amplifier as required.
Unlike the BGS/KA series the DA series has the added feature of separate remote volume controls for each channel and a fire alarm mute interface.
The fire alarm mutes both channels whilst leaving the microphone channels active for evacuation announcements.
Line inputs only exist on the DA Series. This permits an external mixer to be used without going through an input channel there by avoiding additional channel equalisation.
The line input bypasses the remote volume control and fire alarm mute system and designers should decide if this is an appropriate feature for their venue.
Optional extras include a cabinet sleeve, single or dual remote volume control panels and 100 volt line transformers at 100+100 or 250+250 Watts.
If different music is required in two or more zones please see the Z2Z or Z4Z series below.
For more information visit the DA Series product page.
Available at 100 or 250 watts RMS power per zone in only 1U of rack space.
The Z2Z series amplifiers permit microphone and music selection for two separate zones and also includes user adjustable mic override.
Each zone can have different music and individual remote volume control as well as fire alarm interface.
Two microphone inputs and 4 stereo line inputs can be selected for either zone.
Status LEDs for each zone indicate music selected, microphone selected, voice override active and remote volume on /off status.
Optional extras include a cabinet sleeve, single or dual remote volume control panels and 100 volt line transformers at 100+100 or 250+250 Watts.
For more information visit the Z2Z Series product page.

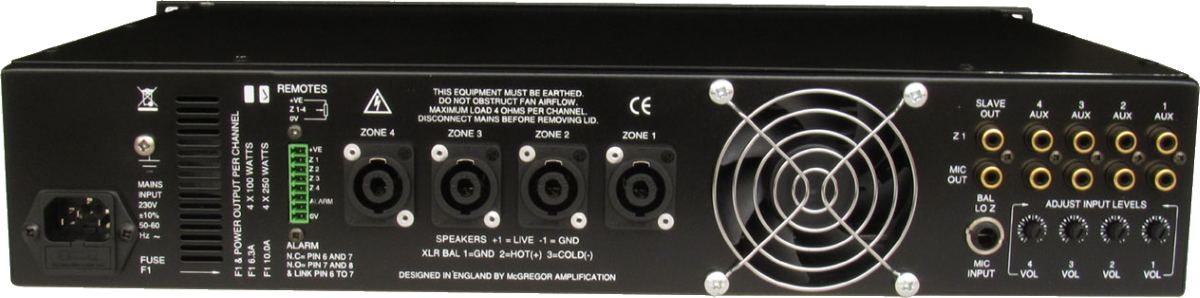

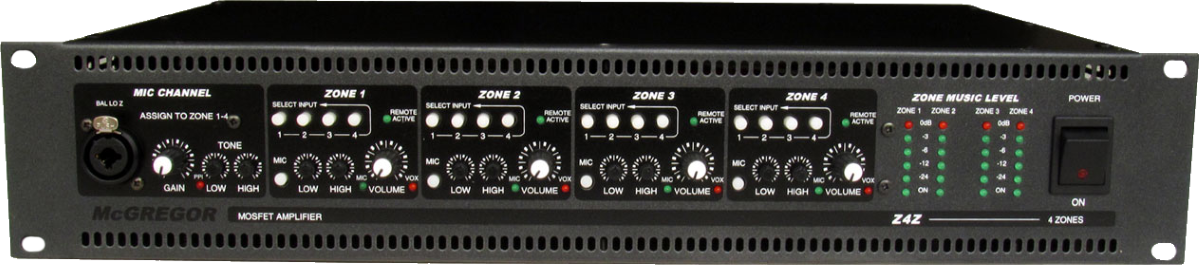

The Z4Z amplifier is available at 100 or 250 watts RMS power per zone in only 2U of rack space.
The Z4Z series amplifiers permit microphone and music selection for four separate zones and also includes user adjustable mic override.
Each zone can have different music and individual remote volume control as well as fire alarm activation.
A single front or rear connected microphone and 4 stereo line inputs can be selected by any zone.
Status LEDs for each zone indicate music selected, microphone selected, voice override active and remote volume on / off status.
Amplifiers can be interconnected to expand a system to 8 or more zones.
Optional extras include a 2U cabinet sleeve, single or dual remote volume control panels and 100 volt line transformers at 100+100 or 250+250 watts.
For more information visit the Z4Z Series product page.
This compact range of dual channel 1U power amplifiers has been designed to complement the McGregor range of 1U mixer amplifiers.
They are ideal for boosting power levels, driving additional zones, or simply extending bass response with additional bass bins.
250 watts and 100 watts per channel options are available. Features include master volume controls with twin 5 segment LED VU power output displays, active clip limiter
(internally configurable off to max), twin phono and 6.3mm jack input sockets, twin phono output sockets, speakon speaker sockets and fan cooling via a proportional speed fan.
For more information visit the SA Series product page.
