All cabinets within this range are trapezoidal shaped and are painted with a black textured paint. Tilt and swivel brackets for wall mounting are available as accessories. Standard 35 mm top hats are fitted to all models.
Product Photos:
This is a very compact, stylish speaker that fits descretely into most venues and can be mounted vertically or horizontally with the aid of our optional easy to fit cradle.
Useful as a vocal monitor or front of stage infill and exceptional as a mid / hi cabinet in combination with the LF10 or LF12 sub for high powered music applications where extended bass is required.
See Speaker Accessories for mounting cradles, if required.
Product Photos:

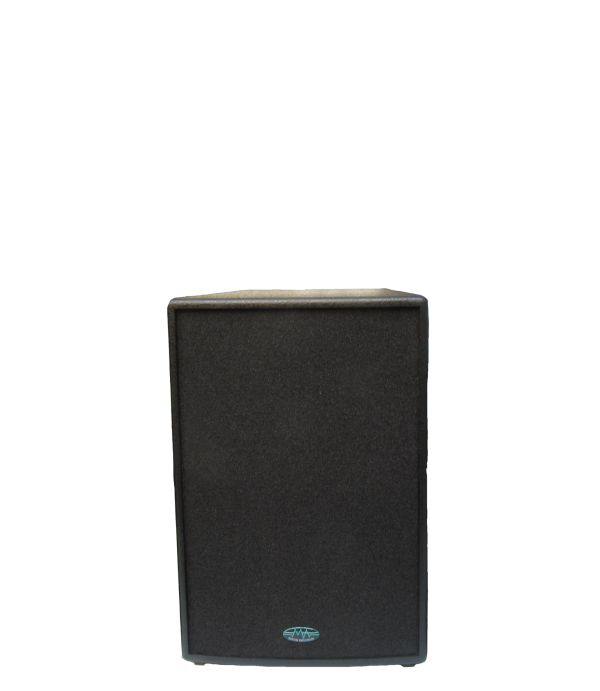

The McGregor FR8 / 225 is primarily used as a mid / hi speaker cabinet with the LF10/350 sub in two way systems, however it
can be used as a full range cabinet up to its full 225 Watts rating.
This speakers brilliant vocal reproduction combined with crystal clear top end make it the perfect choice for hi spec
installation work and high quality entry level sound systems when combined with the LF series subs.
See Speaker Accessories for mounting brackets and cradles, if required.
Product Photos:

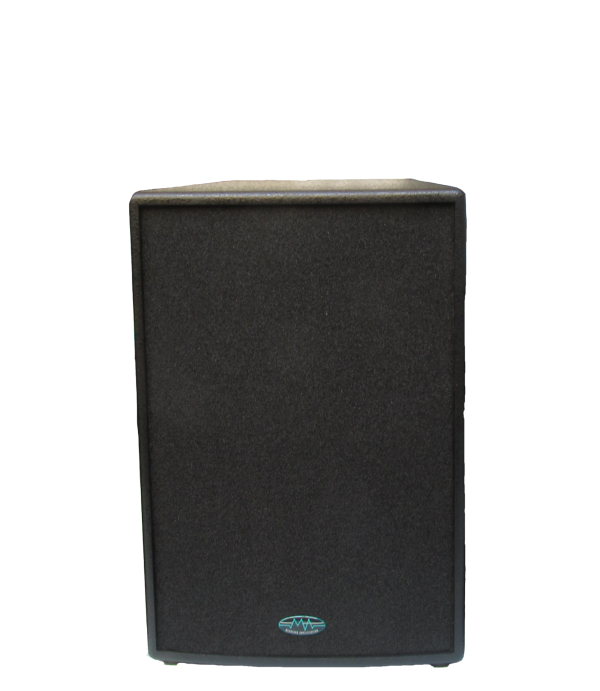

The McGregor FR10 / 350 is a multi-purpose full range cabinet utilizing a high power full range 10″ driver coupled to a
carefully designed bass reflex cabinet. A 1" horn driver is used for exceptional clean and precise top end response.
Although extremely impressive as a full range speaker, it is very impressive as the mid / hi driver in a two way system or
simply parallel driven with a LF10 / 350 sub. The incredibly smooth frequency response of the FR10 / 350 makes a truly compact,
stylish and reliable front of house solution and is ideal where space is at a premium.
Product Photos:

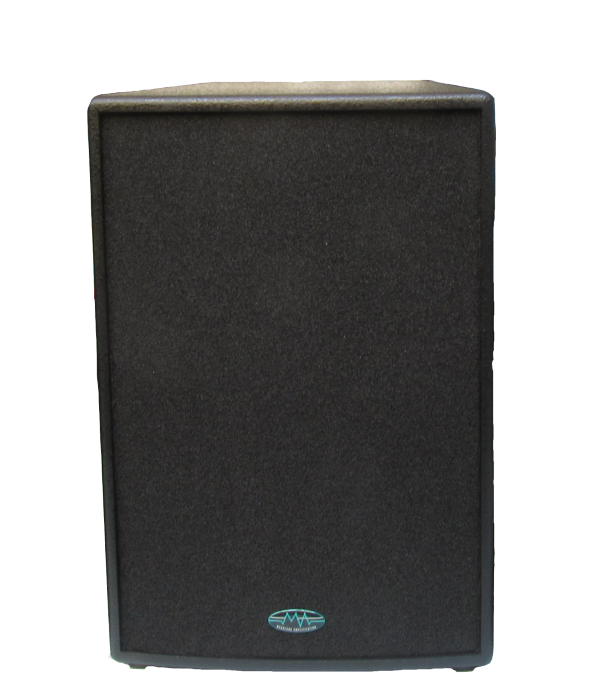

The McGregor FR12 / 450 is a stunningly competent full range multi-purpose loudspeaker. This speaker combines a carefully
selected, high efficiency, 12″ driver with the crystal clear top end response of a 1" compression driver. The remarkably flat
frequency response is equally at home re-producing the subtleties of your finest vocals as it is thrashing out the latest dance
beats. When driven in parallel with an LF12 / 450 sub a remarkable level of bass will more than impress. Power handling with
the LF12 sub then increases to 900 Watts per side as a 4 ohm load. (Total system power 1800 Watts)
Any of our 650 + 650 Watt RMS amplifier products are perfectly matched for this permutation and without the subs will
produce 470 + 470 Watts at 8 ohms.
Product Photos:

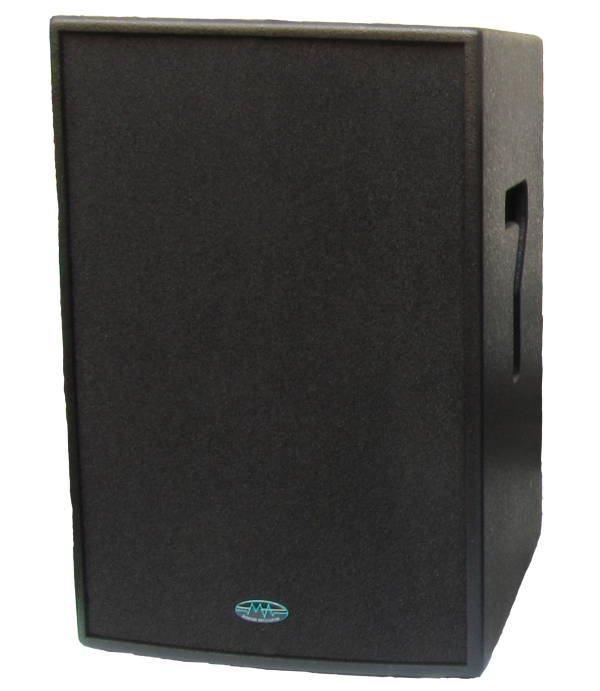

The McGregor FR15 / 500 is the ideal full range loudspeaker where the objective is maximum bass without floor level subs. This speaker features a compact and slim-line reflex cabinet with outstanding performance for a single 15" driver and CD horn.
Product Photos:
The McGregor FR15 / 500N is the ideal full range loudspeaker where the objective is maximum bass without floor level subs. This speaker features a compact and slim-line reflex cabinet with outstanding performance for a single 15" driver and CD horn.
Product Photos:
| Model | Configuration | Power | Impedance (Ohms) |
X-Over | Response | SPL | Connections | Weight | Dimensions (HxWxD) |
|---|---|---|---|---|---|---|---|---|---|

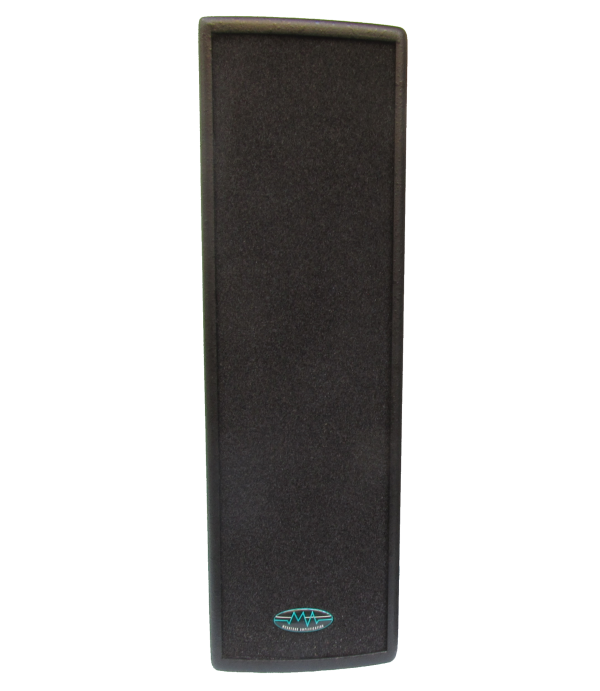

| FR404-300 | 4x 4" & Horn | 300W | 8Ω | 8KHz | 150Hz - 20KHz | 97dB | Speakon | 8.4KG | 600x185x195MM |
| FR8-225 | 8" & Horn | 225W | 8Ω | 2k5Hz | 70Hz - 20KHz | 96dB | Speakon | 7.1KG | 414x255x250MM |
| FR10-350 | 10" & Horn | 350W | 8Ω | 2k5Hz | 65Hz - 20KHz | 97dB | Speakon | 11.7KG | 470x300x311MM |
| FR12-450 | 12" & Horn | 450W | 8Ω | 2k5Hz | 63Hz - 20KHz | 97dB | Speakon | 16.8KG | 580x390x375MM |
| FR15-500 | 15" & Horn | 600W | 8Ω | 1k7Hz | 58Hz - 20KHz | 98dB | Speakon | TBC | 660x436x442MM |
| FR15-500N | 15" Neo & Horn | 700W | 8Ω | 1k7Hz | 58Hz - 20KHz | 98dB | Speakon | 21.5KG | 660x436x442MM |

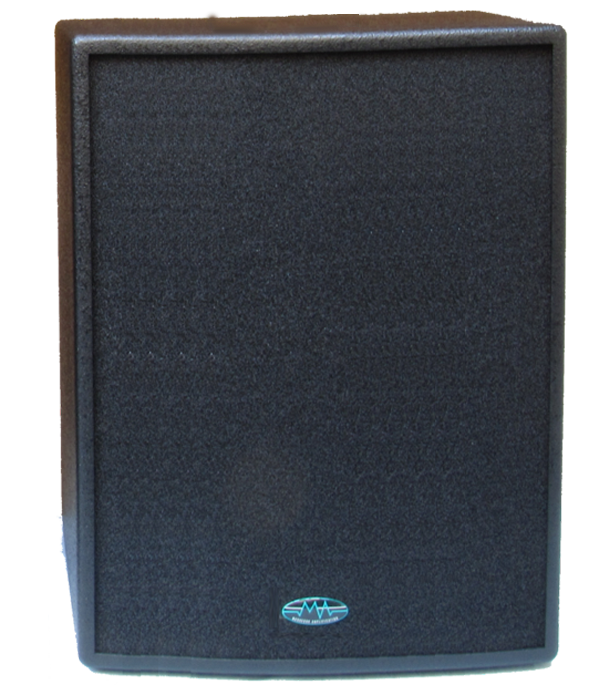

| FR18-1000 | 18" & Horn | 1000W | 8Ω | 1k7Hz | TBC | TBC | Speakon | TBC | TBC |
