Z2Z Series - Zoning Amplifiers

Two Low-Z microphone channels with shared two band EQ
All microphone inputs are balanced or unbalanced on combi XLR/Jack sockets

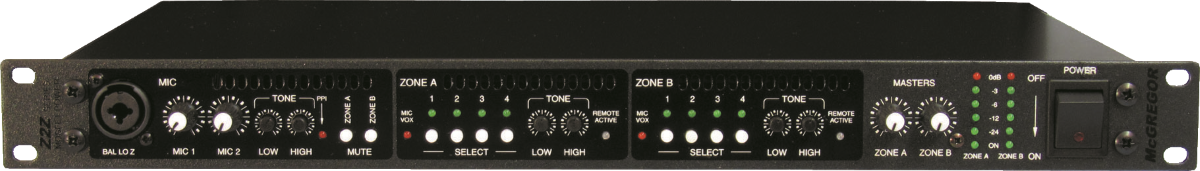

Microphone 1 input is mounted on the front panel, microphone 2 input is mounted on the rear panel
Microphone channels feature volume, bass and treble controls with PPI indicator
Microphone channels have mute switches for zone A and B with LED indicators on the front panel
Internally adjustable microphone voice override (VOX) with led indicators on each zone

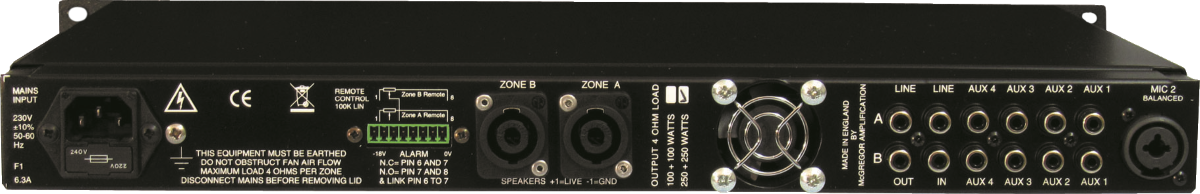

Four stereo line inputs on rear mounted twin phono (RCA) sockets connect to either zone when selected
Internal level preset on input 4 for fixed low or high level signal sources
Line selector switches with LED indicators for both zones
Seperate bass and trebble EQ settings for each zone
Seperate master and remote volume controls for per zone
Fire alarm music mute on each zone (leaves microphone active for evacuation announcment purposes)
Line output and line input on rear mounted photo (RCA) sockets
Two five segment LED VU power output meters display the levels in each zone
Active clip limiter with maximum SPL facility on both zones
Speaker outputs on rear mounted neutrik speakon sockets
Fan cooled with low-noise proportional speed fan

Power Output (RMS) @ 1kHz
Z2Z-200 - 100 + 100 watts RMS into 4 ohms
Z2Z-500 - 250 + 250 watts RMS into 4 ohms
70% into 8 ohms
Microphone inputs: Balanced or unbalanced 3k3 - 5mV
Line inputs: Unbalanced >22k - 200mV
Line output: Unbalanced <10k - 775mV (0dB)
Headroom: +22dB (PPI’s active @ +19dB)
Bass EQ: +/- 15dB @ 50Hz - Shelved
Treble EQ: +/- 15dB @ 12kHz - Shelved
Frequency response: 20Hz – 25kHz +/-0.5dB
Signal to noise ratio: Better than 100dB
Channel seperation: Better than 60dB
Clip Limiter: Internal limiting (variable from off to max required SPL)
T.H.D. @ 1kHz rated power – <0.02%
D/C Protection: +/-32V
Damping Factor: Better than 400
Slew Rate: 40V / uS
Mains Input Power: 230V +/-10% 50-60Hz
