KD2 Series - PA Mixer Amplifiers

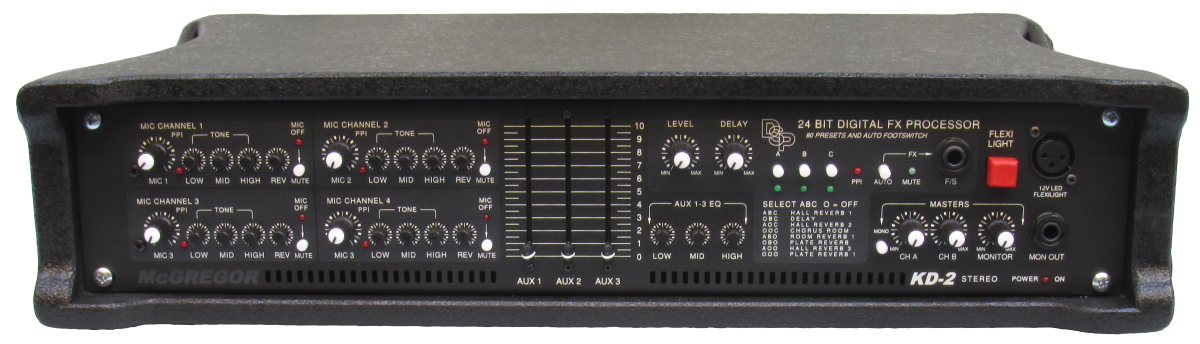

Product Photo Options:

The KD2 is available in three very different options.

The PA HEAD is the most compact format and is ideal for install and mobile applications due to its sleeved carrying case. (not rack mountable) It is ideal for placing on a shelf where space is at a premium or for use where very little boot space is available.

The PA CONSOLE option is for flat bed use but unlike a mixer, a laptop can be placed on the top. This system takes up very little footprint and is easy to control.

The PA COMBO option is very versatile as it has three amplifiers inbuilt. The amplifiers drive channel A+B speakers and the internal combo speaker as a monitor. The combo can be used as a fold back monitor or as a self contained small PA. Adding the external speakers makes this combo into an outstanding self contained PA system.

All above options make the KD2 ideal for backing track singers, duos, trios, quartets, keyboard players, club and school applications and many more.

Features

Four microphone channels with rear mounted combi XLR / jack socket inputs (balanced or unbalanced)
Each microphone channel has its own Volume, Bass, Mid, Treble, Reverb, mute switch and LED status indicator
Three stereo line level auxiliary inputs with rear mounted phono (RCA) sockets
Three 60mm slider level controls with shared Bass, Mid & Treble tone controls
24 Bit Digital Signal Processor (DSP) with push switch selection of 12 different effects
Variable Delay and Level can be applied to any effect - (equivalent to 120 presets)
The PPI LED shows if DSP drive level is too high so input drive can be reduced
A footswitch can be used to switch the DSP on or off manually
Auto, if selected, will detect the music level on any aux input and automatically mutes the reverb without the need to return to the footswitch
An LED indicates the muted status
Master rotary level controls for CH A, CH B and Monitor. A stereo / mono push switch is also included
Speaker outputs on rear mounted Speakon sockets

Specifications

Power Output (RMS) @ 1kHz
- Head & Console Models
KD2 500 - 250 + 250 watts RMS into 4 ohms
KD2 1000 - 500 + 500 watts RMS into 4 ohms
KD2 1300 - 650 + 650 watts RMS into 4 ohms
- Gigbox Combo Models
KD2 750 - 250 + 250 watts RMS into 4 ohms,
175 watts internal monitor speaker from third amplifier
KD2 1500 - 500 + 500 watts RMS into 4 ohms,
350 watts internal monitor speaker from third amplifier
70% into 8 ohms
Microphone inputs: Balanced or unbalanced 3k3 - 5mV
Line level inputs: Unbalanced >22k - 200mV
Slave line output: Unbalanced <10k - 775mV (0dB)
Headroom: +22dB (PPI’s active @ +19dB)
Bass EQ: +/- 15dB @ 50Hz - Shelved
Mid EQ: +/- 8dB @ 2k5Hz
Treble EQ: +/- 15dB @ 12kHz - Shelved
Frequency response: 20Hz – 25kHz +/-0.5dB
D/C Protection: +/-32V
Signal to noise ratio: Better than 100dB
Clip Limiter: Active clip limiting (Internal variable threshold)
T.H.D. @ 1kHz rated power – <0.02%
Damping Factor: Better than 400
Slew Rate: 40V / uS
Mains Input Power: 230V +/-10% 50-60Hz

Options, Dimensions & Weights

- KD2 500 Head - 250 + 250 Watts RMS into 4 ohms

Width: 530MM | Depth: 340MM | Height: 126MM | Weight: 11.7KG

- KD2 1000 Head - 500 + 500 Watts RMS into 4 ohms

Width: 530MM | Depth: 340MM | Height: 126MM | Weight: 12.7KG

- KD2 1300 Head - 650 + 650 Watts RMS into 4 ohms

Width: 530MM | Depth: 340MM | Height: 126MM | Weight: 13.7KG

- KD2 500 Console - 250 + 250 Watts RMS into 4 ohms

Width: 530MM | Depth: 435MM | Height: 148MM | Weight: 14.6KG

- KD2 1000 Console - 500 + 500 Watts RMS into 4 ohms

Width: 530MM | Depth: 435MM | Height: 148MM | Weight: 15.6KG

- KD2 1300 Console - 650 + 650 Watts RMS into 4 ohms

Width: 530MM | Depth: 435MM | Height: 148MM | Weight: 16.6KG

- KD2 750 Gigbox - 250 + 250 Watts RMS into 4 ohms
+ 175 Watts RMS into 8 ohms internal monitor speaker

Width: 515MM | Depth: 340MM | Height: 400MM | Weight: 21.9KG

- KD2 1500 Gigbox - 500 + 500 Watts RMS into 4 ohms
+ 350 Watts RMS into 8 ohms internal monitor speaker

Width: 515MM | Depth: 340MM | Height: 400MM | Weight: 22.9KG

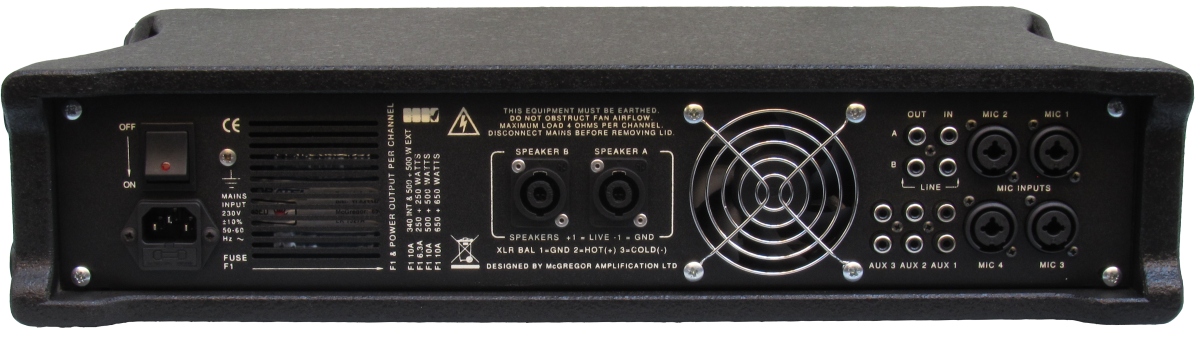

Product Rear Photo Options:
