BGM Series - Mixer Amplifiers | McGregor Amplification

Two microphone channels and three auxiliary line level channels - Both with separate two band EQ

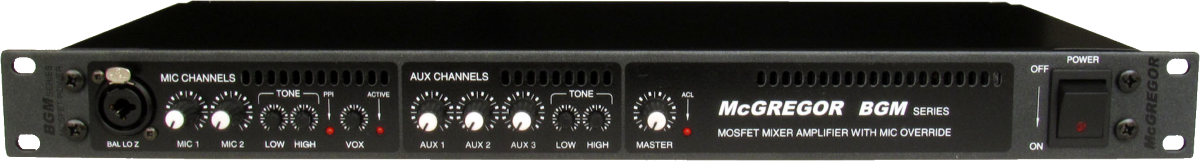

Microphone 1 input, balanced or unbalanced (XLR/Jack socket) accessible via the front panel

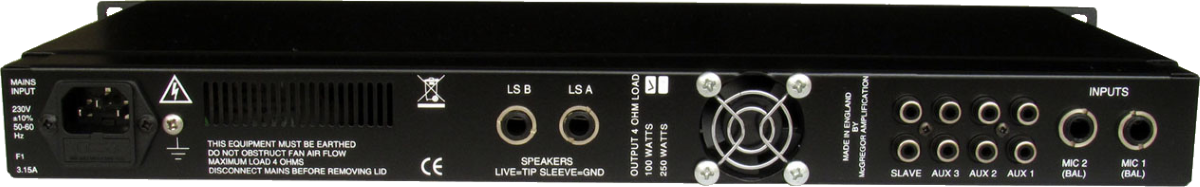

Microphone 1 & 2 inputs (balanced or unbalanced) are rear mounted on 6.35mm jack sockets
Volume 1 & 2, bass, treble and PPI indicators are microphone channel features
Aux 1-3 input and slave output connections on rear mounted twin phono (RCA) sockets
Speaker outputs on 6.35mm rear mounted jack sockets
Active clip limiter (internally configurable off to max)
Fan cooled with proportional speed fan
Externally adjustable voice override level (VOX) with vox active led indicator
(Operates with any microphone to automatically reduce the music level when selected)
Three line level volume controls with bass and treble EQ
Overall master output volume control

Power Output (RMS) @ 1kHz
BGM100 - 100 watts RMS into 4 ohms
BGM250 - 250 watts RMS into 4 ohms
70% into 8 ohms
Microphone inputs: Balanced or unbalanced 3k3 - 5mV
Line level inputs: Unbalanced >22k - 200mV
Slave line output: Unbalanced <10k - 775mV (0dB)
Headroom: +22dB (PPI’s active @ +19dB)
Bass EQ: +/- 15dB @ 50Hz - Shelved
Treble EQ: +/- 15dB @ 12kHz - Shelved
Frequency response: 20Hz – 25kHz +/-0.5dB
D/C Protection: +/-32V
Signal to noise ratio: Better than 100dB
Clip Limiter: Active clip limiting (Internal variable threshold)
T.H.D. @ 1kHz rated power – <0.02%
Damping Factor: Better than 400
Slew Rate: 40V / uS
Mains Input Power: 230V +/-10% 50-60Hz

BGM Series - Mosfet Mixer Amplifiers
