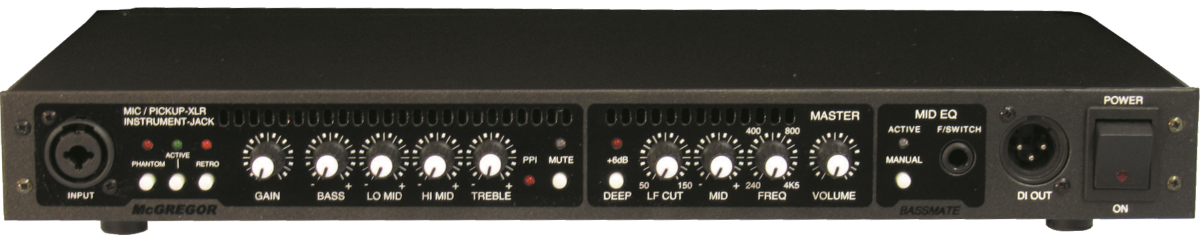

Features
- Passive input (1 Meg ohm) via the 6.3mm jack socket
- Active input (10K ohm) is push switch selected and has an LED status indicator
- The retro button is for that old style sound!
- Mic / Pickup input via the XLR socket with a switchable phantom supply and LED status indicator
- Comprehensive four band EQ centred on carefully selected frequencies
- LF Filter variable between 50-150Hz @ 18dB / Octave
- Parametric EQ, 245Hz-4K5Hz +8 to -12dB (Footswitch or front panel switchable with LED status indicator)
- Input Gain and Master Volume control with convenient mute push switch with LED status indicator
- Peak Programme Indicator LED shows onset of overdrive distortion

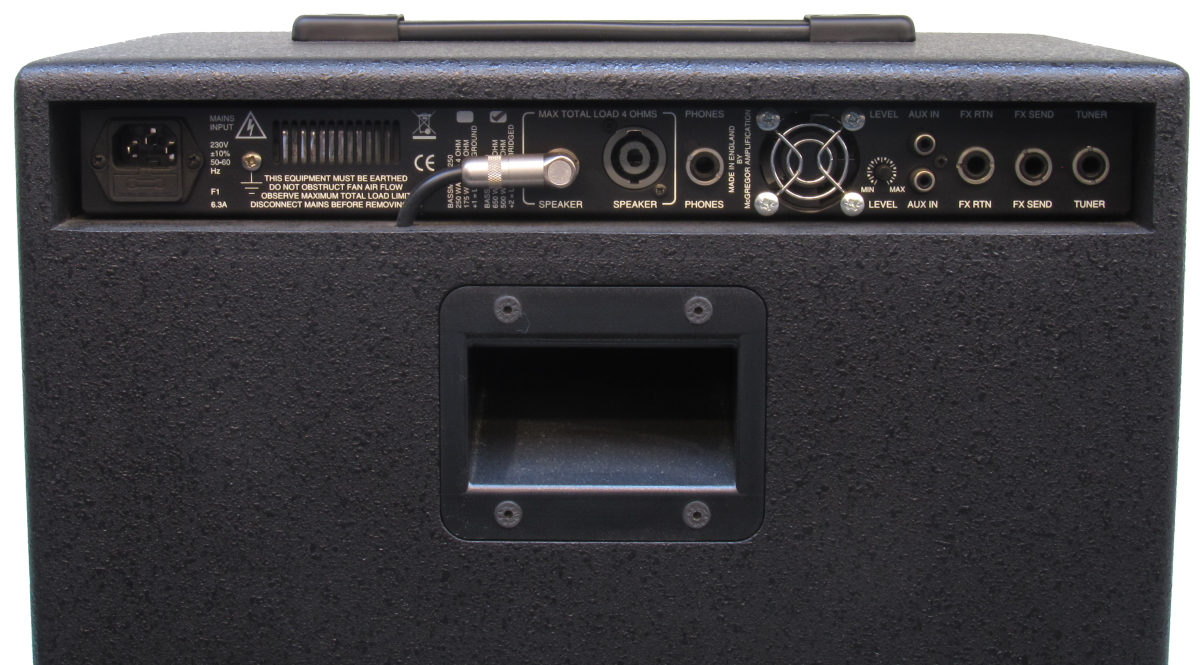

- FX send and return loop on the rear panel (uses 6.3mm jack for in /out)
- Tuner output on the rear panel (uses 6.3mm jack)
- DI output is via a balanced line XLR socket mounted on front panel
- Class AB mosfet amplifier with proportional speed fan and active clip limiter ensure stress free sound quality at all times
Specifications
- Power Output (RMS) @ 1kHz
Bassmate 250 - 250 watts RMS into 4 ohms
Bassmate 650 - 650 watts RMS into 4 ohms
70% into 8 ohms
- Microphone inputs: Balanced or unbalanced 3k3 - 5mV
- Line level inputs: Unbalanced >22k - 200mV
- Line output: Unbalanced <10k - 775mV (0dB)
- Headroom: +22dB (PPI’s active @ +19dB)
- Low EQ: +/- 12dB @ 50Hz
- Low Mid EQ: +/- 10dB @ 360Hz
- High Mid EQ: +/- 10dB @ 1K8Hz
- High EQ: +/- 14dB @ 10kHz
- Frequency response: 20Hz – 25kHz +/-0.5dB
- D/C Protection: +/-32V
- Signal to noise ratio: Better than 100dB
- Clip Limiter: Active clip limiting (Internal variable threshold)
- T.H.D. @ 1kHz rated power – <0.02%
- Damping Factor: Better than 400
- Slew Rate: 40V / uS
- Mains Input Power: 230V +/-10% 50-60Hz
Options, Dimensions & Weights
- Bassmate 250 - 250 Watts RMS into 4 ohms
- Width: 400MM
- Depth: 260MM
- Height: 43MM
- Weight: 7KG
- Bassmate 650 - 650 Watts RMS into 4 ohms
- Width: 400MM
- Depth: 260MM
- Height: 43MM
- Weight: 12KG

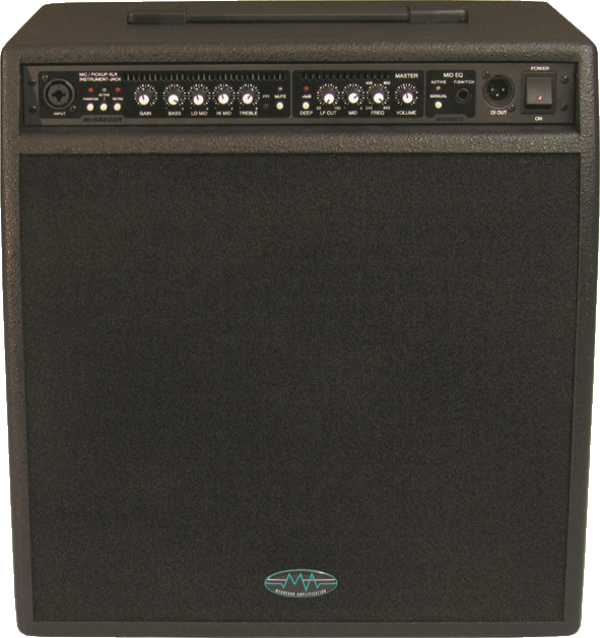

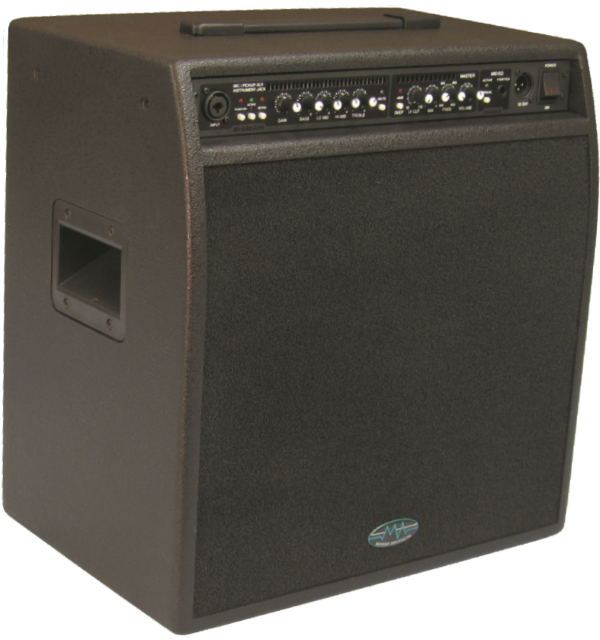

- Bassmate 650 Combo - 650 Watts RMS into 4 ohms
- Width: 432MM
- Depth: 300MM
- Height: 455MM
- Weight: 22KG
