VP-1 Series - Compact Consoles | McGregor Amplification

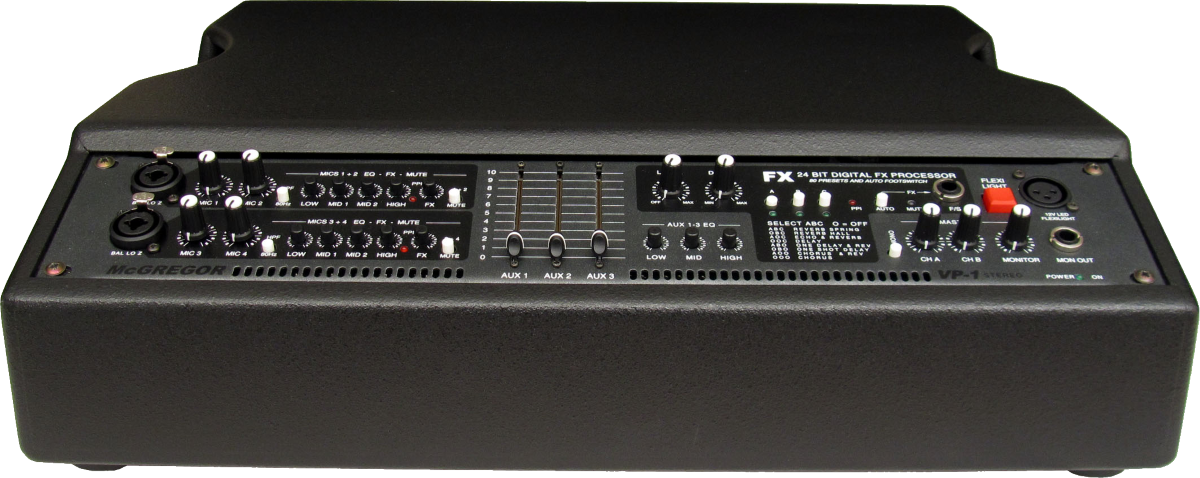

Four balanced microphone inputs, Two combi XLR/Jack sockets are located on the front panel and two 6.35mm jack sockets on the back panel
Two microphone channels both have volume level, low, low mid, high mid and high equalisation controls
Both microphone channels also feature a low cut filter at 80Hz, FX level control, peak LED indicator and a mute switch

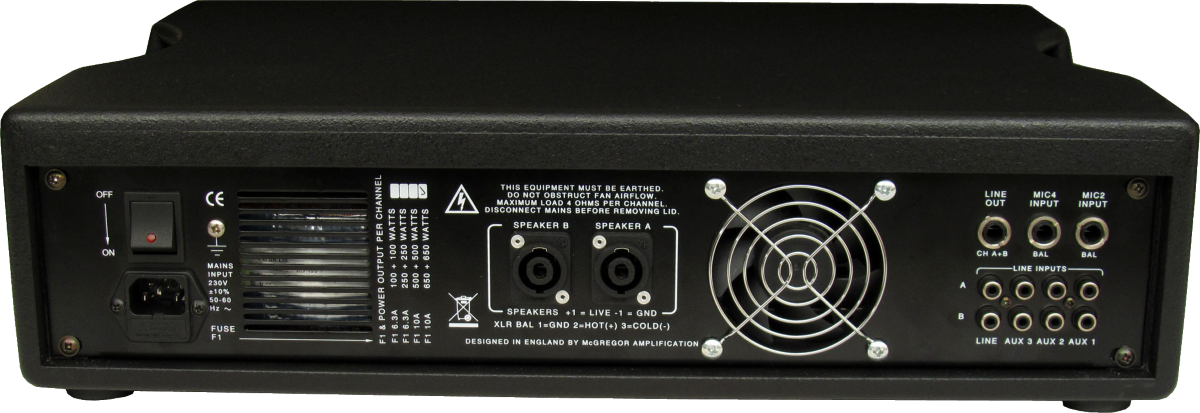

Three stereo line level AUX/music inputs are on rear mounted phono (RCA) sockets
Three 60mm faders control the line/AUX input volumes and are aided by and low, mid, hi equalisation controls
Digital FX Processor with 8 different effects and LED indicators
Ten different user selectable delays produce over 80 different FX via the rotary FX controls
FX mute by a latching footswitch or auto-detected, visual indication is provided by a blue status LED
Overall monitor output on a 6.35mm jack socket with rotary level control
Separate master output level controls for channel A & B with a stereo / mono push switch
Speaker outputs for both channels on rear mounted speakon sockets
Switched 12 Volt XLR output socket for an optional LED flexilight
Covers available for mobile use (see Amplifier Accessories)

Power Output (RMS) @ 1kHz
VP-1 500 - 250 + 250 watts RMS into 4 ohms
VP-1 1000 - 500 + 500 watts RMS into 4 ohms
VP-1 1300 - 650 + 650 watts RMS into 4 ohms
70% into 8 ohms
Microphone inputs: Balanced or unbalanced 3k3 - 5mV
Line level inputs: Unbalanced >22k - 200mV
Line output: Unbalanced <10k - 775mV (0dB)
Headroom: +22dB (PPI’s active @ +19dB)
Bass EQ: +/- 16.8dB @ 50Hz - Shelved
Mid EQ: +/- 10dB @ 360Hz
Mid 2 EQ: +/- 10dB @ 2K5Hz
Treble EQ: +/- 14.5dB @ 10kHz - Shelved
Low Cut Filter: @ 80Hz
Frequency response: 20Hz – 25kHz +/-0.5dB
D/C Protection: +/-32V
Signal to noise ratio: Better than 100dB
Clip Limiter: Active clip limiting (Internal variable threshold)
T.H.D. @ 1kHz rated power – <0.02%
Damping Factor: Better than 400
Slew Rate: 40V / uS
Mains Input Power: 230V +/-10% 50-60Hz
